SIMRAD HALO 200X 50w Radar System No Antenna 10m Cable and RI-50

Item: 000-15947-001
This item is brand new
$5,849.00
Request price match
Backorder, ships in 3 - 4 weeks
wi|wi

Description

Features

Simrad Halo 200x 50w Pulse Compression Radar System without Antenna

Model: 000-15947-001

HALO 2000 - 50W power for longer range (from 6m to up to 72nm) and higher-resolution target detection
Advanced pulse compression technology with beam sharpening
Simultaneous Dual Range operation
Easy operation with Harbour, Offshore, Weather, and Bird modes
Track up to 50 targets per defined area with ZoneTrack (two areas can be defined)
VelocityTrack Doppler technology for collision avoidance
Dangerous Target Alerts for radar and AIS targets
Ready instantly from standby, and in 16-25 seconds from power-on

Benefit from safer navigation and unmatched ease of use with the new HALO® 2000 and 3000 Open Array radars. Advanced Pulse Compression technology allows you to detect birds, hazards and storms with superior precision across both short and long distances. While the range of Preset Modes and enhanced power provide constant peace of mind.

The HALO® 2000 radar offers a premium experience on the water. An impressive 50 W of power — equivalent to a 12 kW magnetron radar — delivers an unrivaled combination of short- and long-range coverage that enables you to see targets from six meters (20 feet) out to 72 nautical miles with exceptional clarity. Pulse Compression technology powers confident navigation through marinas, and superior storm and hazard detection across a greater distance. The HALO® array series not only increase situational awareness and collision avoidance but also offer higher-resolution target detection you won’t find in lower-powered radars.

The HALO 2000 series boast an array of new features that make navigation safer and offer peace of mind. ZoneTrack™ brings the best of professional boating technology to recreational users, allowing them to track up to 50 vessels within a defined area, automatically detecting their course and speed. HALO’s Dangerous Target Alerts highlight range, graphical bearing, and heading of other vessels relative to yours. Meanwhile, VelocityTrack™ uses Doppler technology to show targets color-coded so you can identify potential threats at a glance. Because, when it comes to safety, situational awareness is everything.

The next generation of pulse compression radars, HALO 2000 and 3000 build on the features that have made HALO an established choice for boaters across the globe. The solid-state technology gets you up and running quickly, and HALO’s low-power pulsed transmissions make it safe to run in harbors and marinas. Dual Range mode allows you to keep an eye on distant weather cells while monitoring channel markers and high-speed watercraft up close. Advanced digital signal processing gives you a clearer view of targets, helping eliminate sea clutter, while Beam Sharpening provides enhanced separation between small or distant targets. Finally, HALO 2000 and 3000 have the same footprint as their predecessors, making it easy to upgrade your current system. It’s also compatible with a range of Simrad® chart plotters, including NSS™, NSX™, NSO™, and GO™.

Designed with an intuitive interface HALO arrays make operation easier with smart features like Harbour, Offshore, Bird, and Weather modes. These Preset Modes require no manual tuning — just select your chosen mode and go. This simple approach also extends to fishing, with HALO’s powerful bird-finding capability which enables boaters to find flocks of birds and — more importantly — schools of fish at a distance.

Specifications

Environmental
Operating temperature	-25°C to +55°C (-13°F to +131°F)
Relative humidity	IEC60945 Exposed product
Vibration	IEC60945 Exposed product
UV	IEC60945 Exposed product
Waterproofing	IPX6 for the pedestal and antenna, IPX5 for the RI-50 interface module
Relative wind velocity	HALO 2000 and HALO 3000 radars with 3 ft, 4 ft or 6 ft antenna have a wind rating of 80 knots at 48 rpm in both 24V and 12V systems.
Power
Power consumption	235 W (peak, 12V) at maximum wind velocity, 380 W (peak, 24V) at maximum wind velocity, 45-60 W (average) at zero wind velocity, 11 W (average) in standby mode. Refers to RI-50 input terminals
DC Input	Radar system input 12 OR 24 V DC into the RI-50: 12 V Systems 10.8 - 15 V DC, 24 V Systems 20 - 31.2 V DC. Pedestal voltage input is 50 V DC nominal generated by RI-50
Power up time	30-40 seconds from POWER OFF to TRANSMIT
Physical
Height	429 mm (16.88") with antenna mounted
Antenna swing circle diameter	3 ft model: 3.75 ft / 1142 mm / 44.96": 4 ft model: 4.73 ft / 1443 mm / 56.81": 6 ft model: 6.72 ft / 2047 mm / 80.59"
Pedestal weight	20.3 Kg (44.8lb)
RI-50 weight	1.6 Kg (3.5 lb)
10 m (33 ft) cable weight	1.6 Kg (3.5 lb)
Antenna	(Sold Separately)
Rotation speed	16 to 48 rpm depending on operating mode
Beam width	3 ft model: 2.4°+/-10% (-3 dB width) — 1.7° with Beam sharpening mode on: 4 ft model: 1.8°+/-10% (-3 dB width) — 1.3° with Beam sharpening mode on:6 ft model: 1.2°+/-10% (-3 dB width) — 0.8° with Beam sharpening mode on
Beam width Vertical	25° +/-10 % (-3 dB width)
Plane of polarization	Horizontal polarization
Sidelobe level 3 ft	Below -23 dB max. (within ±10°), Below -30 dB max. (outside ±10°)
Side lobe level 4 ft	Below -23 dB max. (within ±10°), Below -30 dB max. (outside ±10°)
Side lobe level 6 ft	Below -23 dB max. (within ±10°), Below -30 dB max. (outside ±10°)
Radar
Peak power output	50 W ± 10% under any transmit condition — up to 10% duty cycle max
Transmitter	Solid state module with no long-term transmitter power degradation
Transmitter frequency	Synthesized - Upper half of X-Band 9.390 - 9.495 GHz
Pulse length	0.04 usec
Chirp length	2-64 usec
Chirp bandwidth	2-48 MHz. Up to 1 pulse and 4 chirps in a burst with burst repetition rate of 500-3000Hz. Range and mode dependent.
Effective pulse compression ratio	less than 150 in all modes.
Instrumented range	72 nm
SART/RACON triggering	Yes — trigger distance: about 1nm max — weather, sea state, and SART position dependent
Duplexer	Circulator and isolator
LNA	GaAs front-end
IF section	Center frequency: 31.25 MHz Bandwidth: 50 MHz max.* A/D; 16 bit 125 MSPS *Narrower bandwidths defined by signal processing
Noise figure	5 dB (Min) at antenna input
Compass safe distance; Pedestal	STD. 1.0 m (3.3 ft), Steer 0.5 m (1.6 ft)
Compass safe distance; RI-50	1.0 m (3.3 ft)
Other
Communication ports	Ethernet 10/100 Base-T RJ-45 for radar data and control
Transmit synchronization	RS-422 output
Remote power on	yes
Antenna park hold	Yes (while radar is unpowered)
Motor	Brushless with solid state commutation with electromagnetic braking for parking

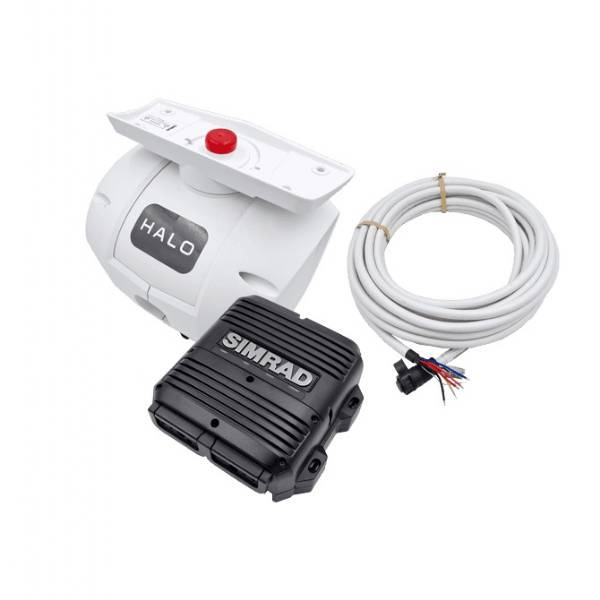

What's in the Box:

Halo 200x Pedestal
RI-50 Power Supply
10m Power and Ethernet cable
