SIMRAD NAC-1 Outboard Pilot Hydraulic Pack, MKII PUMP-1 Includes Precision-9
Item: 000-15951-001
This item is brand new
$1,749.00
Request price match
This item ships within 1 day
wi|sw|wi|ln
This item is brand new
$1,749.00
Request price match
This item ships within 1 day
wi|sw|wi|ln
Features
Simrad Outboard Pilot Hydraulic Pack with MKII Pump-1 AND Precision-9 Heading Sensor
Model: 000-15951-001- Easy to Install
- Dash-mount button for one-touch Auto/Standby activation
- Steer to Heading, Course or Route
- Automatic Turn Patters
- NAC-1 Plug & Socket connectors — no screw terminals or wire stripping necessary
- High efficiency, super-quiet 0.8L hydraulic gear pump (Pump-1 MKII)
- Add a second Helm station to a boat using the MFD Power steer commands — no need for additional hydraulics + steering wheel.
Outboard Pilot is an MFD Autopilot add-on system designed for boats up to 30ft with single outboard motor. System packs contain everything you need to fit an Autopilot to Hydraulic or Cable steer outboard motors.
Specifications| Supply Voltag | 12vDC |
| Max Drive output | 8A continuous, 16 Amp peak |
| Interfaces | |
| Network | 1xMicroC |
| Feedback | Variable voltage from HELM -1 drive unit |
| Drive output | To PUMP-1 or HELM-1 |

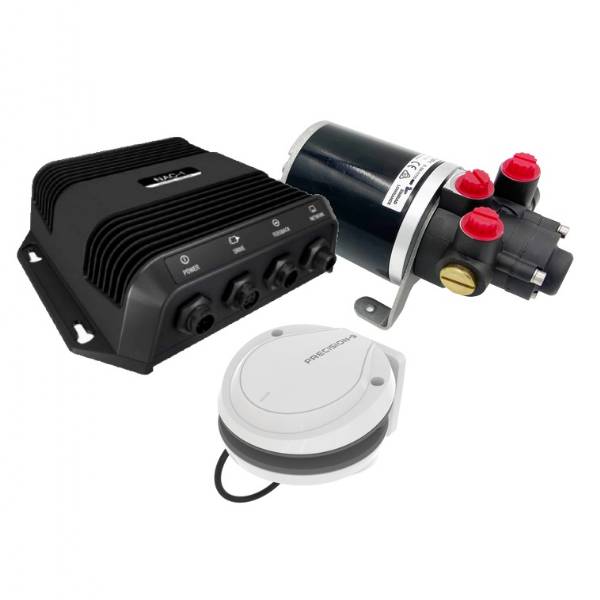

What's in the Box:
- NAC-1 AUTOPILOT COMPUTER
- PUMP-1 - 12V 0.8L For outboard pilot
- Autopilot pump fitting kit for ORB steering system
- Auto-Stby Button - Metal
- N2KEXT-2RD - 0.61 m (2-ft) NMEA 2000® cable
- N2KEXT-6RD - 1.82 m (6-ft) NMEA 2000® cable
- N2KEXT-15RD - 4.55 m (15-ft) NMEA 2000® cable
- TR-120-KIT - Set of 1 male and 1 female NMEA 2000® terminators
- MICRO-C Power cable only
- Low loss NMEA2000 4-way joiner
- Precision-9 Compass
Specifications
Item number: 000-15951-001UPC: 9420064128099
Package weight: 13.90 lb
