STANDARD HORIZON Chart Plotter, 7 inch color, GPS, C-Map

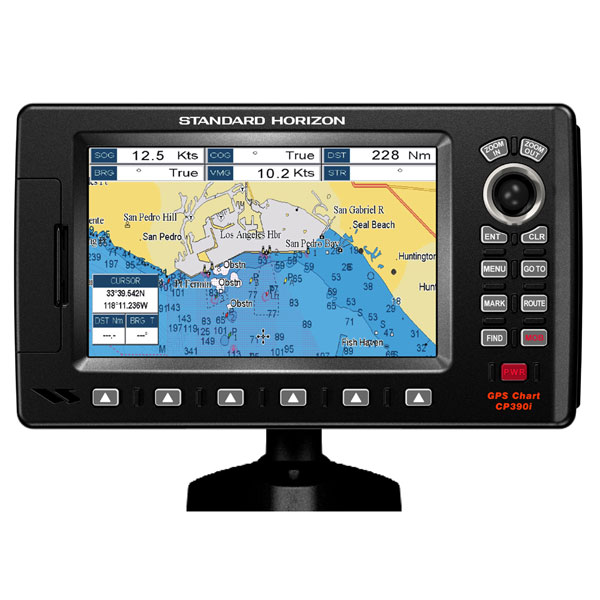

 CP390iNC - 7” Internal GPS Chart Plotter (Base Map version)

Sunlight viewable 16:9 aspect ratio Wide Screen display

10’ accuracy is obtained with the integrated 50 channel WAAS GPS receiver or optional GPS Smart antenna. This units come fully equipped with a swivel bracket and flush mount hardware. NMEA connections are available to compatible VHF for DSC distress and position polling functions.

Connect to a video source and watch your favorite DVD, play your favorite video game, or monitor your engine room in full screen or Picture in Picture. To find fish, wrecks and record water temperature, simply connect the optional FF525 50/200 kHz black box fish finder and transducer. Dedicated MARK, ROUTE and INFO keys allow for fumble free operation. 5 user programmable hot keys allow quick and easy access to a number of preprogrammed navigation displays. In addition, the CP390iNC displays and tracks AIS (Automatic Identification System) targets when connected to an optional AIS Receiver. The CP390iNC is backed by an industry leading 3-year waterproof warranty.

    7” Hi Res 800x480 sunlight viewable display

    Internal 50 channel WAAS GPS receiver and antenna.

    Connection for the optional external 50 Channel WAAS GPS Smart antenna

    C-MAP NT+ and C-MAP MAX compatible

    Optional FF525 Fish Finder

    AIS and AIS SART display capable

    Displays DSC Distress and Position report calls received from a DSC VHF radio

    NTSC or PAL Video inputs with Picture In Picture display

    3000 Marks / 50 Routes

    20 Tracks with 10000 available track points

    Font size selection on chart page

    Find Key, allows quick access to Port information, tide stations, wrecks, Point Of Interest and coordinates (with optional C-Map MAX)

    4 NMEA inputs / 5 outputs

    3 Year Waterproof Warranty

Basemap                              Yes

Card Format                         C-Card

Cartography                        - Preloaded No

Cartography Brand               C-Map

Internal/External Antenna      Internal

Resolution (VxH)                   800 x 480

Screen Size                          7"

Screen Type                         Color

Touchscreen                         No

Waterproof Rating                 Waterproof

Waypoints/Routes                 3000/50

Box Dimensions                    4"H x 8"W x 18"L
