T-SPEC VPNB2 MANL 2-POSITION ALL-IN-ONE DISTRIBUTION BLOCK

Features

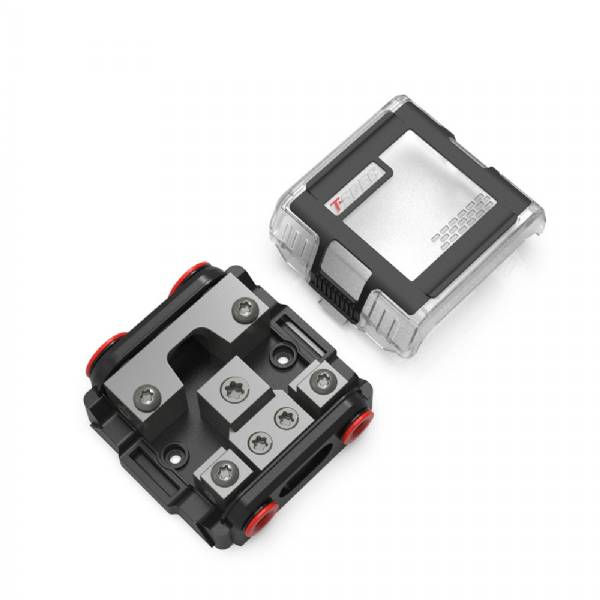

VPNB2 MANL 2 Position All-In-One Distribution Block with Cover

T-Spec designed VPNB2 distribution block to handle the high-current power and ground distribution for two (2) power sources, and protect them each with a mini-ANL fuse.  This hefty little block distributes power from one (1) 1/0-gauge positive power cable to two (2) 4- to 8-gauge power leads, each routed through a mini-ANL fuse.

Then, the same block receives the amps' two ground wires and combines them for a single 1/0-gauge ground cable.

Fuses sold separately.

Features:

• (2 positive) 1/0 to 4 AWG in to (2 positives) 4/8 AWG out
• (1 negative) 1/0 to 4 AWG in to (2 negative) 4/8 AWG out
• TPE wrapped soft touch
• Dual sizes gasket set
• Water-resistant
• Solid brass construction
• Black nickel finish
• T20 Torx® screws
• Gate Lock technology

In the Box:

• Distribution block for both power and ground
  • Plastic cover (attached)
  • 2 Rubber grommets and sleeves on power inputs (installed)
  • 2 Rubber grommets and sleeves on power outputs (installed)

*Sold as an Individual
