UFLEX USA Power a electronic control package - dual engine/single station - electronic throttle/electronic shift

Contents of the package

Features

• Private Protocol can bus for data transmission

• Connection of multiple stations up to 4 controls

• Modular System

• Direct communication w/electronic engines (SAE J 1939 or NMEA 2000)

• Plug'N Play connectivity

• Automatic engines synchronization

• Dock Assist

• Fully programmable shift delays

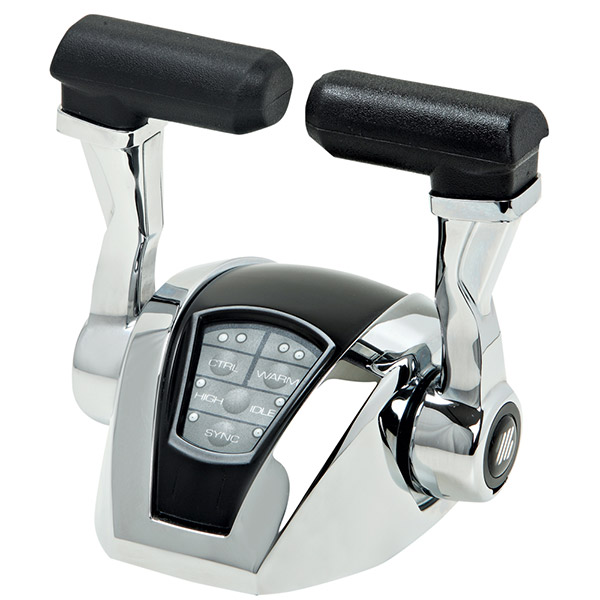

• 42011T - (1) PA2-B2 - Dual Lever Control w/o Trim

• 42017F - (1) PA2-CU - Control Unit w/LED Diagnostc & Programming Screen

• 42018H - (1) PA2-VT - V-Throttle f/0-5V Interface

• 42027J - (2) PA2-MA - Electro Mechanical Actuatorf/Shift and/or Throttle

• 42028L - (1) PA2-NT - Network Terminator

• 42029N - (2) T-VT2 - Universal V-Throttle Cable 6.5'

• 42053K - (1) M-P3 - Main Power Supply Cable, 9.8'

• 71021K - (2) CAN-10 - Network Connection Cable 33'

• 73639T - (2) CAN-1 - Network Connection Cable 3'

• 42026G - (1) PA2-PU - Power Supply Unit f/12V Systems

• 42056S - (2) M-PE1 - Power Extension Cable 3.3'





Specifications




Item number: EE21
UPC: -
Package weight: 13.15 lb

---
