WAVE WIFI High performance wi-fi access system

---

Contents of the package

Features

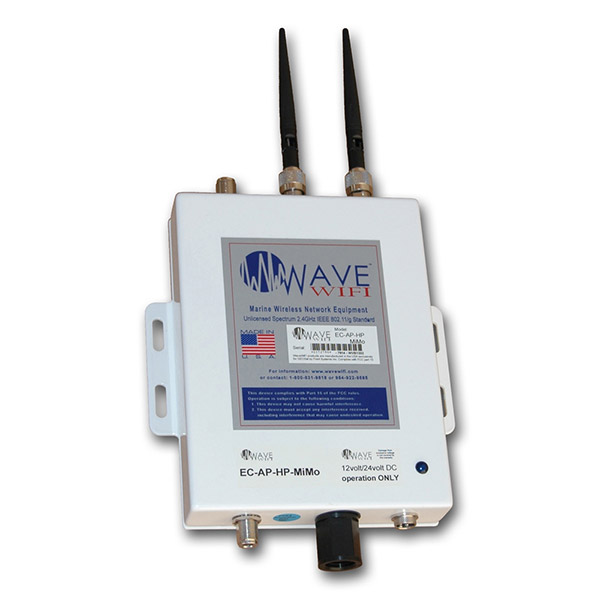

EC-HP (Ethernet converter/Bridge)

Wireless Internet requirements differ from one boat to another. Wave WiFi offers a range of products that meet the most discriminating requirements of the small boat owner or megayacht captain.

Wave WiFi's EC-HP produces the highest allowable output power of 1 Watt providing long-range connections to good quality HotSpots.

The built-in amplifier supplies maximum receive sensitivity(-107dBm @ 11Mb/s).

All HP units ship with the latest firmware version of Wave WiFi's proprietary web-based interface. Both HP models support WEP, WPA and WPA2 encryption and have a unique, built-in 'help' system.

The EC-HP is an Ethernet Converters (EC) so a direct connection can be made to any Ethernet enabled device resulting in flawless performance as a standalone system or integrated into the boat's network. Also there is no software to install, no USB restrictions and no power-robbing USB connections. This means better performance for plug-and-play computer accessories like SKYPE phones and webcams.

Features include:

• 1 Watt (+30dBm) output power

• Easy to use web-based Wave WiFi Interface

• 2.4 GHz - 8dB - 48" Comrod omni-directional Antenna

• 25-foot LMR-400 antenna cable

• DC power cable (12 volts)

• 25-foot Ethernet cable

• Up to 12-mile range from a quality HotSpot

• Instructional CD and Quick Start Guide

• One year written limited warranty

• AP Output (EC-AP-HP) - 200mW (+24dBm)

Specifications

Item number: EC-HP
UPC: -
Package weight: 11.7 lb

---
