XANTREX 100 Watt Solar Kit

Features

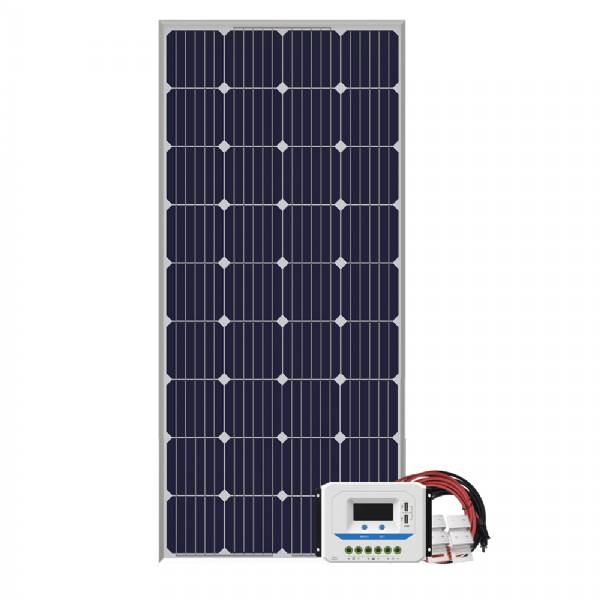

Xantrex 100 Watt Solar Kit

• 15% smaller and lighter*
• Best in class 18% module efficiency*
• PERC Technology**
• 5 year product warranty
• 5 busbar technology***
• *Xantrex 100W rigid panel specs and performance compared with 100W models of other popular brands
• Solar Panel - The Xantrex Solar 100W and 160W kits feature solar panels with 5 Busbars and PERC (Passivated Emitted and Rear Contact) mono-crystalline cells, a special cell technology that increases module efficiency significantly over standard solar cells.
• Charge Controller - A 30A Pulse-Width Modulation (PWM) flush-mounted charge controller is provided to charge and protect your batteries. Featuring an LCD screen, multi-stage battery charging, charging protections, two USB ports and real-time system indicators.
• PV and Battery Cables - Weather resistant and certified cables are provided to connect your PV modules to your charge controller and from your charge controller to your battery. The PV cables and battery cables, with a built-in fuse and ring terminals, built-in ferrule terminations for quick connections to the charge controller.
• Mounting Brackets & Hardware - Mounting brackets, cable clamps and tie wraps are included.
• Expansion Kits - Includes solar panels, mounting brackets and hardware and a pair of male and female branch connectors to connect solar panels in parallel.

The Xantrex Solar 100W and 160W kits feature solar modules with 5 Busbars and PERC (Passivated Emitted and Rear Contact) mono-crystalline cells, a special cell technology that increases module efficiency significantly over standard solar cells.

Both solar kits include a 30A charge controller and system hardware that is designed for a fast & easy installation, including PV cables & battery cables with a built-in fuse and ring terminals, built-in ferrule terminations for quick connections to the charge controller and mounting brackets. Easily customize and extend your solar system using our expansion kits.

Specifications
