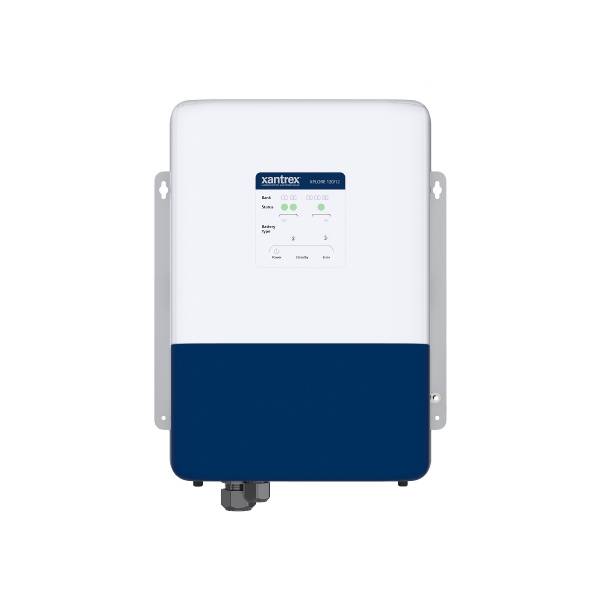

XANTREX Xplore Battery 120 Amp 6 Bank 12v Charger

Item: 819-0120-12
This item is brand new
$1,340.95
Request price match

This item ships within 1 day
wi|cw|sw|wi

Description

Features

Xantrex Xplore battery Charger 12v 120 Amp

Model: 819-0120-12

6 Battery Banks and Dual-Chemistry Charging
Xantrex Lithium and Custom Battery Charging
NMEA 2000 Connectivity
Xantrex App Connectivity
Auto-ranging universal input voltage (80-265 Vac, 45-65 Hz)
Power Share: automatically reduces charging output to prevent nuisance tripping of the AC input breaker.
Quiet Mode: when enabled, the internal fan is turned off and the charger operates at a reduced output when quietness is needed.
Storage Mode: automatically refreshes your batteries once every several days of non-use to ensure optimal battery condition.
Dead Battery Charging: ability to charge a battery as low as 0V back to full-charge
Reverse battery polarity protection
Drip-proof design
Over and under-temperature protection
DC over-voltage protection
Battery overcharging protection

The XPLORE 120/12 battery charger is the largest and most powerful charger in the market today. The universal, auto-ranging AC input and 120 amps of output current ensures ultra-fast and reliable worldwide charging. With up to six output banks of simultaneous charging combined with the ability to charge two battery banks with differing chemistries, the XPLORE 120/12 eliminates the need to have separate single-chemistry chargers and minimizes installation and wiring costs for your house bank and engine bank.

It is also equipped with an easy-to-read front panel LED display for basic configuration and status information. Advanced monitoring and configuration is enabled by NMEA 2000 protocol or Xantrex app using the Xantrex BLE module.

Specifications

ELECTRICAL SPECIFICATIONS
Max Total BAT1-6 DC Output Current	120A
Max Total BAT1-2 DC Output	Current 5 to 120A (selectable)
Max Total BAT3-6 DC Output	Current 5 to 40A (selectable)
DC Output Voltage	12Vdc (nominal)
DC Output Connections	6
AC Input Voltage (Auto Ranging)	120Vac / 230Vac (nominal), 80 to 265 Vac
Power Factor at Full Charge Rate	> 98%
Charging Modes	3-Stage, 2-Stage, Constant Voltage
Supported Battery Types	AGM, FLD, GEL, Xantrex LFP, Custom
Equalization (FLD Battery Only)	Yes
GENERAL SPECIFICATIONS
Operating Temperature	4 to 140 F (-20 to 60 C), with output derated above 122 F (50°C)
Storage Temperature	40 to 176 F (-40 to 80 C)
Operating Humidity	5 to 95% RH, non-condensing
AC Input Terminal Connection	3-position tool-free spring clamp terminal
DC Output Terminal Connection	BAT1-2: Two M6 stud terminals
L x W x H Charger	16.26in (413mm) x 12.34in (312mm) x 6.5in (165mm)
Ingress Protection (IP) Rating Charger:	IP-32 (vertical)
REGULATORY APPROVALS
Safety	ETL listed to CSA C22.2 No. 107.2, conforms to UL Std. UL1236 (with Marine Supplement)
EMC	47 CFR (FCC) Part 15B, Class B and CAN ICES-3(B) / NMB-3(B)
Ignition Protection	SAE J1171, ABYC C-1500

What's in the Box:

XPLORE Charger unit
Xantrex BLE Module (PN: 808-0889)
Owner's Guide and extra labels
