GARMIN Tread Audio System Box Only
Item: 010-02646-01
This item is brand new
$799.99
Request price match
Backorder, ships in 3 - 4 weeks
an
This item is brand new
$799.99
Request price match
Backorder, ships in 3 - 4 weeks
an
Antennas
Cables
Cases and Covers
Mounts
Various
Also available
Contents of the package

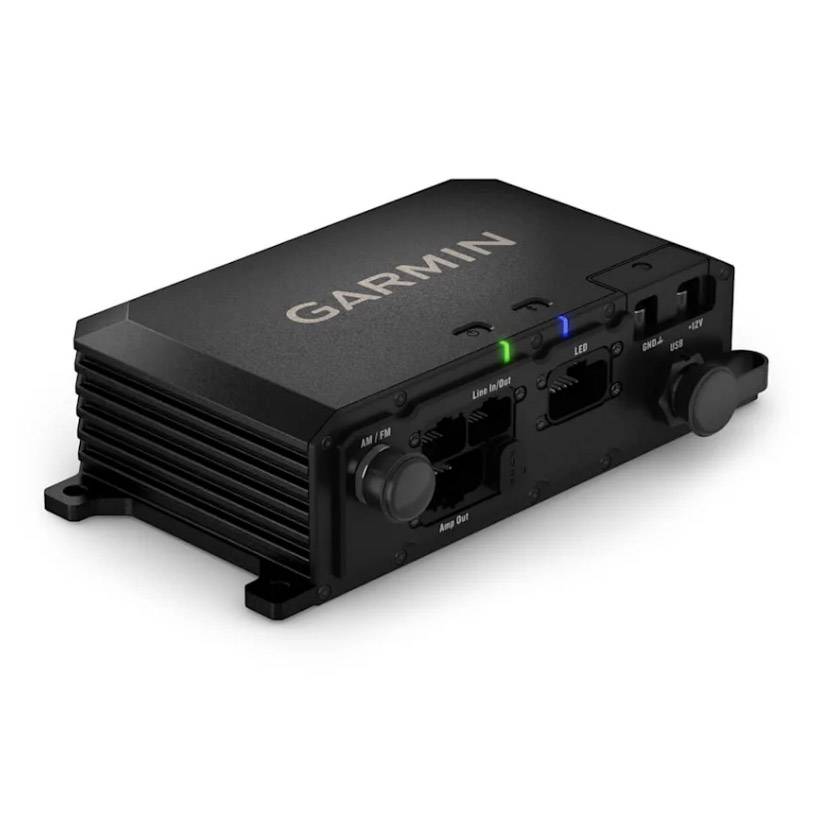

Tread Audio Box with LED controller
Wireless remote
Wiring
Documentation
Wireless remote
Wiring
Documentation
Features
THIS SOUND TRAVELSThe Tread audio system delivers premium quality audio that you can take on any adventure and is designed for any off-road powersport vehicle.
Options for audio sources include AM/FM, AUX and BLUETOOTH® technology.
The built-in speaker LEDs let you control and even sync colors to your music.
Enjoy the flexible setup designed for any side-by-side or other off-road vehicle.
Pairs with the Tread® app on your compatible smartphone or Tread® device to display music and settings.
The rugged design helps withstand bumpy rides and weather conditions, so your music never skips a beat.
A wireless remote is included for convenient control.
RUGGED DESIGN
The IP67 design is built to withstand dust, water and weather conditions, so your music will keep playing through rough terrain.
MULTIPLE AUDIO SOURCES
Enjoy quality audio from multiple sources, including AM/FM radio, AUX and even BLUETOOTH.
WIRELESS REMOTE
Control your music with the included wireless remote that controls volume, track and audio source.
PAIR WITH TREAD APP
Pair with the Tread app on your compatible smartphone for full control, and see a display showing music settings.
PAIR WITH TREAD DEVICE
Pair with any rugged Tread all-terrain navigation (sold separately) device to control audio, show music settings and more.
FLEXIBLE SETUP
A universal design is built for any side-by-side or off-road powersport vehicle.
Specifications
Audio BoxWeight 997 g (2.2 lbs)
Physical Dimensions (LxWxH) 210 mm x 130 mm x 55 mm (8.27" x 5.12" x 2.165")
Water and dust rating IP67
Input voltage 8 to 14.4 Vdc
Current (max) 40 A
Current (muted) less than 650 mA
Operating temperature range -4° F to 158° F (-20° to 70° C)
Storage temperature range -40° F to 185° F (-40° to 85° C)
Compass safe distance 203 mm (8")
BLUETOOTH wireless range up to 10 m (30 ft)
ANT wireless range up to 10 m (30 ft)
Fuse 15 A mini-blade type
Peak power (Watts) Four 200 W per channel
RMS power (Watts) Four 100 W RMS at 14.4 Vdc input, 4 ohm
Warranty 1 year
Speakers
Weight 2.49 kg (5.5 lbs)
Physical Dimensions 177 mm x 233 mm (6.97" x 8.78")
Water and dust rating IP67
Operating temperature range 32° - 122° F (0° to 50° C)
Speaker size 6.5"
Peak power (Watts) 200 W per speaker
RMS power (Watts) 50 W
Sensitivity (1 W/1 m) 91 db
Frequency response 80 Hz - 18kHz
Nominal impedance 4 ohms
Recommended amplifier power (RMS) 20 - 150 W
LED lighting yes (RGB)
LED supply voltage 10.8 - 16 Vdc
LED load current @ 14.4 VDC 150 mA
Voice coil diameter 30 mm (1.18")
Cone material polypropylene (PP) cone with cloth surround
Tweeter type aluminum dome
Supported roll bar sizes 33.4 mm (1.31") to 50.8 mm (2.00") outer diameter
Warranty 1 year
Wiring 3 m
Item number: 010-02646-01
UPC: 753759299316
Package weight: 2 lb
