GARMIN Tread XL - Baja Chase Edition

---

Contents of the package

Features

NAVIGATE THE UNFORGIVING
Built for high speed and high performance, this rugged off-road chase navigator has the tools you need to stay on track and the communication technology to stay in touch with global satellite coverage. With Tread XL - Baja Chase Edition, you’ll know where your race vehicle is and be able to communicate and support your team if any challenges come up or if you need to coordinate repairs.

Team tracking with built-in inReach® technology allows race vehicles and chase trucks to message and track each other with live position updates1.
GPX course file-compatibility lets you view course start/end, racetrack line, virtual checkpoints, pit locations and race mile markers.
This rugged navigator is IP67 dust and weather-resistant and has a 10” ultrabright touchscreen display.
Get prerunning tools for creating custom pacenotes — such as “sharp turn” — to help navigate your most efficient route through virtual checkpoints.
The Tread Baja Chase Edition includes a heavy-duty suction cup for easy portability from one support truck to another.

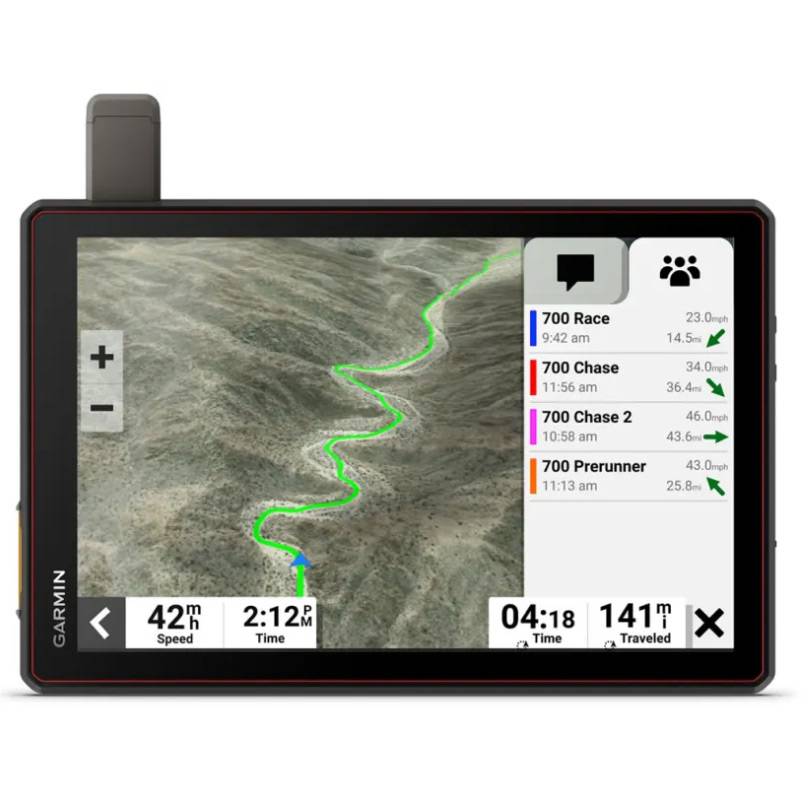

Put your device in chase mode to track your race vehicle with real-time updates on the map.

TEAM TRACKING
Team tracking with built-in inReach technology lets you see the live positions of your race vehicle and chase truck in real time with global satellite coverage. And you can easily send and receive messages to coordinate repairs. Requires active inReach Flex Team subscription.

EASY PORTABILITY
The Tread Baja Chase Edition has a heavy-duty suction cup, vehicle power cable and robust, portable mounting hardware to easily move from one chase truck to another.

KNOW THE COURSE
Import the GPX data ahead of time to view the course start/end, racetrack line, all virtual checkpoints, pit locations and race mile markers.

PRERUNNING TOOLS
Prerunning tools let you create custom pacenotes — such as “sharp turn,” “stepdown” or “danger” — to help you anticipate obstacles and navigate the most efficient route through all virtual checkpoints.

TRACK YOUR TRUCK
When in chase mode, use your device to track a race vehicle with real-time updates on the map.

HIGH-PERFORMANCE GPS
Get enhanced performance with the external GPS antenna and external inReach antenna (each sold separately). Both are in low-profile, water-resistant housings and have many installation options.

CONTROL YOUR ACCESSORIES
Tread XL works with the Garmin PowerSwitch™ digital switch box (sold separately) to control your vehicle’s 12-volt accessories, such as rock lights, fans and air pumps.

OFF-ROAD RUGGEDNESS
Purpose-built for all-terrain use, this Tread device stands up to desert temperatures and challenging terrain. It’s also IP67-rated for dust and water-resistance.

TEAM TRACKING PLANS
Enjoy team tracking with unlimited SOS, text messages and more (requires active inReach Flex Team subscription).

SATELLITE IMAGERY
Downloadable high-resolution BirdsEye Direct Satellite Imagery shows vivid overhead views of your surroundings. Satellite imagery for the North Baja Peninsula comes preloaded on the device.

Specifications

General
DIMENSION 9.9"W x 7.8"W x 1.2"D (25.2 x 19.9 x 3.1 cm)
DISPLAY SIZE 8.5"W x 5.3"H (21.7 cm x 13.6 cm); 10.1" diagonal (25.7 cm)
DISPLAY RESOLUTION 1280 x 800 pixels
DISPLAY TYPE multi-touch, glass, high brightness HD color TFT with white backlight
DUAL-ORIENTATION DISPLAY
WEIGHT 32.8 oz (930 g)
WATERPROOF IPX7
COMPATIBLE WITH TREAD XL BAJA DOCK ACCESSORY
BATTERY TYPE rechargeable lithium-ion
BATTERY LIFE Up to 6 hours at 50% backlight, Up to 1 hour at 100% backlight

DROP RATING MIL-STD-810
DUST RATING IP6X
MAGNETIC MOUNT locking magnet-assisted mount
MOUNT TYPE heavy-duty suction cup mount
1.5" BALL ADAPTER WITH AMPS PLATE
Maps & Memory
PRELOADED STREET MAPS
HIGH DEFINITION 3D TERRAIN
DATA CARDS microSD™ card (not included)
3D TERRAIN
INTERNAL STORAGE 128 GB
ABILITY TO ADD MAPS
EXTERNAL MEMORY STORAGE yes (256 GB max microSD™ card)
INCLUDES MAP UPDATES
DOWNLOADABLE SATELLITE IMAGERY yes (BirdsEye)
BIRDSEYE DIRECT SATELLITE IMAGERY

Sensors
GPS
GALILEO
10 HZ MULTI-GNSS POSITIONING
BAROMETRIC ALTIMETER
COMPASS

Outdoor Recreation
POINT-TO-POINT NAVIGATION
PRELOADED TOPOGRAPHICAL MAPS
PRELOADED US PUBLIC LAND BOUNDARIES
PRELOADED PRIVATE LAND PARCEL MAPS yes (parcels greater than 4 acres)
PRELOADED USFS ROADS AND TRAILS, INCLUDING MOTOR-VEHICLE-USE-MAPS FOR MOTORCYCLE, ATV, SXS AND FULL-SIZE 4X4
NAVIGATE-A-TRACK NAVIGATION
TURN-BY-TURN TRAIL NAVIGATION

Camera Features
BACKUP CAMERA COMPATIBLE yes (BC™ 50)

Advanced Features
WI-FI® MAP AND SOFTWARE UPDATES

Adventure Features
BUILT-IN INREACH® TECHNOLOGY (REQUIRES ACTIVE SUBSCRIPTION; SUBJECT TO REGULATIONS OR PROHIBITIONS IN SOME JURISDICTIONS)
PAIR WITH GARMIN POWERSWITCH™ DIGITAL SWITCH BOX
COMPATIBLE WITH GROUP RIDE RADIO
COMPATIBLE WITH EXTERNAL GPS ANTENNA WITH MOUNT
COMPATIBLE WITH EXTERNAL INREACH® SATELLITE ANTENNA
GROUP RIDE MOBILE yes (with Garmin Tread app)
TRACK RECORDER (BREADCRUMBS)
IOVERLANDER™ POINTS OF INTEREST
ULTIMATE PUBLIC CAMPGROUNDS
BIRDSEYE SATELLITE IMAGERY (DOWNLOAD VIA WI-FI)
GLOVE-FRIENDLY TOUCHSCREEN

Item number: 010-02833-00
UPC: 753759308537
Package weight: 9 lb

---
