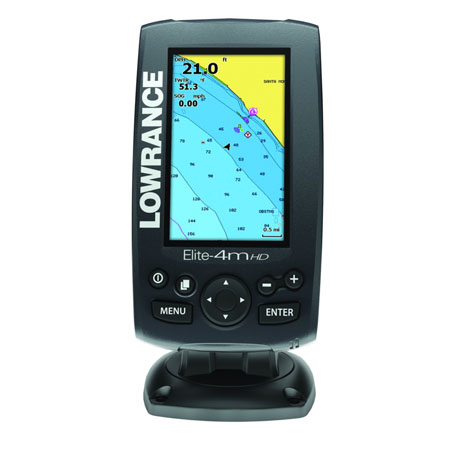

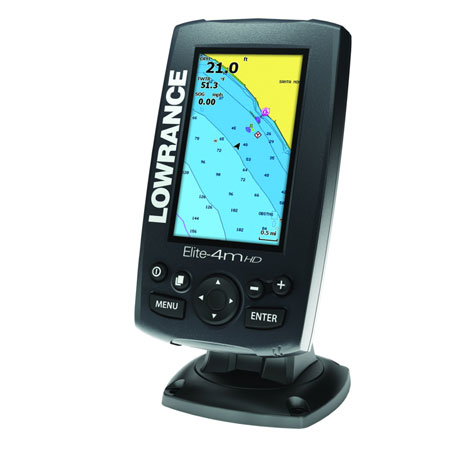

LOWRANCE Elite-4M HD CHARTPLOTTER GOLD
Elite-4 HDI Flush Mount Kit
Suggested Maps and Software:
 | Navionics Marine Charts |
 | Lowrance Maps |
 | C-Map Charts |
 | Cmor maps |
Contents of the package
Features
The compact Elite-4m HD Gold combines a super-bright, LED-backlit color display and built-in GPS antenna with a full selection of easy-to-use chartplotter features that are easy to access and operate -- all at a surprisingly affordable price – and comes pre-packaged with Navionics® Gold cartography- Lowrance-exclusive, high-resolution, 4.3-inch, LED-backlit display with 70% more pixels and 36%more usable screen area than previous Elite-4 series displays.
- Highly accurate, built-in GPS antenna plus a detailed U.S. map featuring more than 3,000 lakes andrivers and coastal contours to 1,000 feet.
- Navionics Gold chartcard featuring U.S./Canada/Alaska and Bahamas coastal, Great Lakes and majorCanadian lakes detail.
- Optional chart upgrades include Lake Insight™ and Nautic Insight™ PRO and HD, HotMaps® Premium,Fishing Hotspots® PRO and Jeppesen C-Map Max-N.
- New easy-to-use page selector menu with quick access to all features using one-thumb operation
- Multi-Window Display lets you quickly and easily choose from pre-set page layouts
- Supported by Lowrance Advantage Service program
Specifications
OverviewLanguages 30
Media Port One (1) high-capacity microSD slot
Operating Voltage 12 vDC (10-17 vDC min-max)
Warranty One year
Display
Display Resolution 480 x 272
Display Type 16-bit color TFT
Display: Backlighting 11-Level LED
Backlighting Levels Adjustable Screen And Keypad
Display Size 4.3 in./10.92 cm.
Technical/Environmental
Waterproof Standard/rating IPx7
Product Width 3.8 in \ 96 mm
Product Depth 2.2 in \ 56 mm
Product Height 6.6 in \ 168 mm (7.5 in \ 189 mm with bracket)
Power
Power Supply (Supply Voltage) 12 vDC (10-17 vDC min-max)
GPS Navigation
Navigation: Routes 100
Navigation: Waypoint
Storage 3000
GPS Antenna Type Internal high-sensitivity WAAS + EGNOS + MSAS (optional external
antenna)
Plot Trails Up to 100 trails - up to 10,000 points / trail
GPS Alarms Yes
Custom Mapping
Navionics® Gold and Jeppesen C-Map Max-N
Background Mapping World reference basemap
Networking Connectors
NMEA Output NMEA 0183
Other
Other Features Declaration of Conformity: Part 15.103 FCC rules & CE RTTE
directive 1999/5/EC
Memory Card Capable Yes
Item number: 000-11294-001
UPC: 9420024128305
Package weight: 3 lb
Following reviews were written by actual customers.
Every GPS4US customer has a chance to live a feedback after receiving a product.
by john A, , 7/14/2015great
