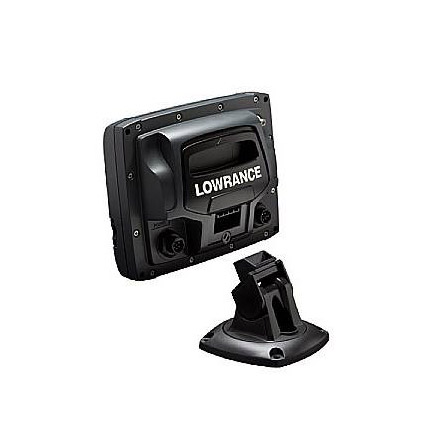

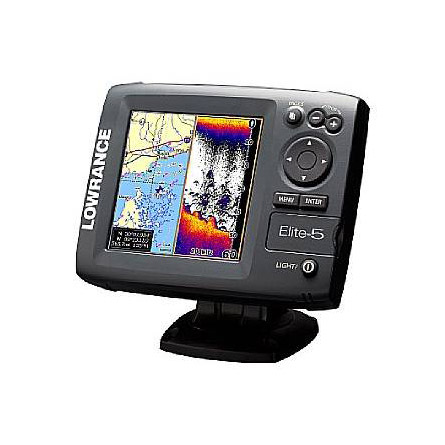

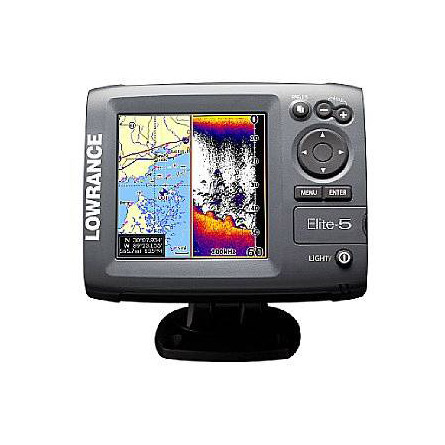

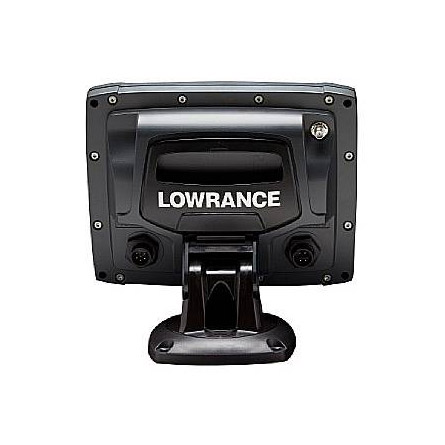

LOWRANCE Elite-5 Gold Combo with 83/200 KHz Transom Mount Transducer
This item is brand new
$565.95
This item ships within 3 days
MKR-US2-9 Lowrance/Eagle 6-Pin Adapter Cable
PDT-WSU 20 Cone 83 200 Khz Transducer
PD-WSU 20 Cone 200 Khz Transducer
Suggested Maps and Software:
 | Navionics Marine Charts |
 | Lowrance Maps |
 | C-Map Charts |
 | Cmor maps |
Contents of the package
Features
The new color Elite-5 Gold fishfinder/chartplotter brings high performance and high color to on-the-water enjoyment in every way, and without a high price. You enjoy incredible precision and functionality, in addition to a spectacular new view.
This bundle includes a custom 2GB Navionics Gold micro SD card with Gold coastal/offshore coverage of US and Canadian waters along with coverage of the Great Lakes, Alaska, Hawaii, the Bahamas and over 125 major Canadian lakes.
The brilliant 5 in./12.7 cm, 480x480 pixel SolarMAX™ 256-color TFT display has unmatched screen brightness, contrast, resolution and viewing detail at wider angles and in bright sunlight. Adjustable screen and keypad backlight improves usability and visibility day or night.
The 500W RMS sounder reaches depth of 1,000'/305 m with its dual-frequency 83/200 kHz Skimmer® transom-mount transducer with internal temp sensor and up to 120˚ of wider sonar coverage. Unique TrackBack™ feature offers immediate scroll-back to review multiple pages of fishfinder history.
The internal 16-channel GPS antenna provides great WAAS+EGNOS+MSAS precision for navigation. And an external antenna option is also available for customized applications. A waterproof microSD memory card slot is fully compatible with Fishing Hot Spots® Pro USA, LakeMaster®, and Navionics® mapcards in the micro SD format for U.S. anglers. Built-in memory allows for up to 3,000 waypoints, 100 routes/100 waypoints per route and 100 retraceable plot trails/up to 10,000 points per trail.
All of this, packaged with easy-to-use menus with Advanced Mode to expand features selection. An all-new case/mounting design provides for easy one-hand tilt/swivel view adjustment, removal and re-install - even fits same cut-out for previous 5 in./7 cm models for in-dash installations. And a new uniplug 1/4-turn connectors are compatible with earlier Lowrance uniplug installations to simplify upgrades to any new Elite model.
Specifications
DISPLAY
Display Size 5 in \ 127 mm
Display Resolution 480x480 (H x W)
Display Type 256-color SolarMAX™ PLUS TFT
Backlighting Flourescent cold cathode
Backlighting Levels Adjustable screen/keypad
Languages Supported 23
SONAR / SOUNDER
Sonar Frequency 83/200 kHz
Transducer Type Skimmer®
Sonar Output Power Max 500W RMS, 4000W PTP W
Sonar Depth Max 1000 ft \ 305 m
Sonar Alarms: Fish, Max and Min Depth Yes
Depth Alarm Yes
Shallow Alarm Yes
Temperature Display Yes
GPS / NAVIGATION
GPS Antenna Type Internal high-sensitivity WAAS + EGNOS + MSAS (optional external antenna)
GPS Receiver Channels 16 channels
Background Map World reference basemap or (U.S. models) over 3,000 enhanced lake maps with depth contour and shoreline detail, plus coastal depth contours/shoreline detail and spot depth soundings to 1,000 ft./305 m
Custom Mapping Includes Navionics® Gold chartcards (U.S. Coastal and Canada Inland/Coastal). Optional Fishing Hot Spots® and LakeMaster® mapcards (U.S.) in microSD format
Waypoint Storage 3000
Routes 100
Plot Trails 100 retraceable plot trails/up to 10,000 points per trail
GPS Alarms Yes
NETWORKING / CONNECTORS
NMEA Output NMEA 0183
TECHNICAL / ENVIRONMENTAL
Built-in Backup Memory Yes
Waterproof Standard Sealed and waterproof, suitable for saltwater use
Width 6.9 in \ 174 mm
Height 5.4 in \ 136 mm
Depth 2.5 in \ 63 mm
POWER
Power Supply 10-17 vDC
OTHER
Memory Card Capable One (1) waterproof microSD card slot
Other Features Unique TrackBack™ feature offers immediate scroll-back to review multiple pages of fishfinder history
Item number: 000-10144-001
UPC: 042194534893
Package weight: 4 lb
