XANTREX 160W Solar Panel w/Mounting Hardware

Item: 780-0160
This item is brand new
$410.95
Backorder, ships in 3 - 4 weeks
|cw|ln

Accessories

Collapse all - Expand all +

Various

XANTREX C-Series Solar Charge Controller - 12 Amps

C12
C-Series Solar Charge Controller - 12 Amps

XANTREX C-Series Solar Charge Controller - 35 Amps

C35
C-Series Solar Charge Controller - 35 Amps

XANTREX C-Series Solar Charge Controller - 40 Amps

C40
C-Series Solar Charge Controller - 40 Amps

XANTREX C-Series Solar Charge Controller - 60 Amps

C60
C-Series Solar Charge Controller - 60 Amps

708-0030
PV Extension Cable - 15 ft

708-0040
PV Single Connector - 1 Pair

708-0050
PV Branch Connector - 1 Pair

XANTREX PV Connector Assembly Tool - 1 Pair

708-0060
PV Connector Assembly Tool - 1 Pair

XANTREX Remote Battery Temperature Sensor

708-0080
Remote Battery Temperature Sensor

709-3024-01
Solar PWM 30A Charge Controller

XANTREX Solar MPPT Remote Panel with 25 ft Cable

710-0010
Solar MPPT Remote Panel with 25 ft Cable

XANTREX Solar MPPT 30A Charge Controller

710-3024-01
Solar MPPT 30A Charge Controller

Description

Features

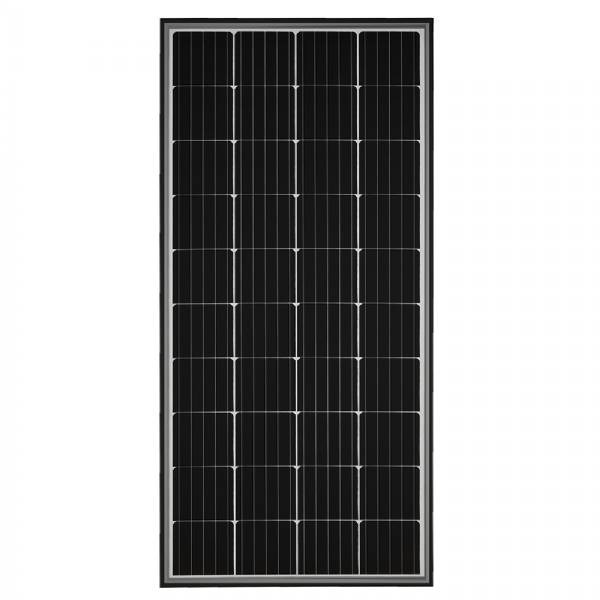

160W Solar Panel with Mounting Hardware

The Xantrex Solar 100W and 160W kits feature solar panels with 5 busbars and PERC (Passivated Emitter and Rear Contact) mono-crystalline cells, a special cell technology that increases module efficiency significantly over standard solar cells.

Both solar kits include a 30A charge controller and system hardware that is designed for a fast & easy installation, including PV cables & battery cables with a built-in fuse and ring terminals, built-in ferrule terminations for quick connections to the charge controller and mounting brackets. Easily customize and extend your solar system using our expansion kits.

Features:

15% smaller and lighter*
Best in class 18% module efficiency*
PERC Technology**
5-year product warranty
5 busbar technology***

*Xantrex 100W rigid panel specs and performance compared with 100W models of other popular brands

**competitor panels do not currently use PERC technology

***Most brands use 2-4 busbars, more busbars means better efficiency & durability

Contents:

Solar Panel - A 100W or 160W solar panel with 5 busbars and PERC (Passivated Emitter and Rear Contact) mono-crystalline cells, a special cell technology that increases module efficiency significantly over standard solar cells.
Charge Controller - A 30A Pulse-Width Modulation (PWM) flush-mounted charge controller is provided to charge and protect your batteries. Featuring an LCD screen, multi-stage battery charging, charging protections, two USB ports and real-time system indicators.
PV and Battery Cables - Weather resistant and certified cables are provided to connect the solar panel to the charge controller and from the charge controller to the battery. The PV cables and battery cables, with a built-in fuse and ring terminals, built-in ferrule terminations for quick connections to the charge controller.
Mounting Hardware - Mounting brackets, cable clamps and tie wraps are included.
Expansion Kits - Includes solar panels, mounting hardware and a pair of male and female branch connectors to connect solar panels in parallel.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications

Item number: 780-0160
UPC: 715535910938
Package weight: 10.00 lb
