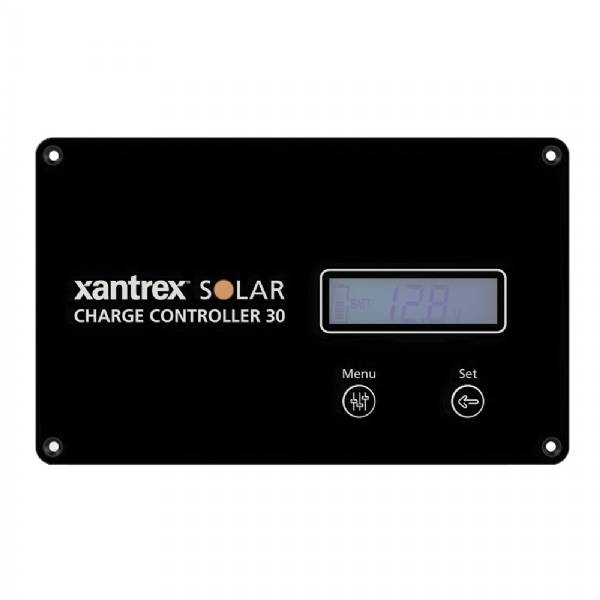

XANTREX Solar PWM 30A Charge Controller
Item: 709-3024-01
This item is brand new
$124.95
Request price match
This item ships within 1 day
wi|cw|sw|wi|ln
This item is brand new
$124.95
Request price match
This item ships within 1 day
wi|cw|sw|wi|ln
Features
Xantrex PWM Charge Controller
Model: 709-3024-01- Advanced multi-stage charging technology, Bulk, Absorption, Float, Equalization
- Battery types supported: Sealed (AGM), Gel, Flooded, Lithium Iron Phosphate (LiFePO4)
- Best-in-class PV array and battery protections
- Aesthetic flush-mount industrial design
Designed to charge lithium ion batteries including LIFePO4, the 30 A PWM (Pulse Width Modulation) charge controller features a flush mount industrial design for a clean finish.
The Xantrex Solar PWM Charge Controller 30 features a highly-efficient PWM charging mode, designed specifically for an aesthetically clean and integrated look in an RV, boat, and truck. Intuitive and easy-to-program to get your solar system harvesting energy as quickly as possible. Equipped with best-in-class PV array and battery protections and a built-in LCD display providing real-time system data. Optional accessories include a remote battery temperature sensor.
SpecificationsNominal System Voltag | 12/24V Auto-Detect |
Battery Input Voltage Range | 8V to 32V |
Rated Charge Current | 30A |
Max. PV Short Circuit Current | 30A |
Max. PV Open Circuit Voltage | 50A |
Battery Types Supported | Sealed (AGM) / Gel / Flooded / Lithium Iron Phosphate (LiFePO ) |
elf-consumption | 12V: 4.2mA 24V: 2.6mA |
Temperature Compensation Coefficient | -3mV/°C/2V |
Grounding | Common negative |
ENVIRONMENTAL DATA | |
Storage Temperature Range | -30°C to 80°C |
Operating Temperature Range | -20°C to 55°C (fully rated output) |
MECHANICAL DATA | |
Dimensions | 7.03" W x 4.31" H x 1.86" D (178.5mm W x 109.4mm H x 47.3mm D) |
Max. Cable Size (PV Array and Battery | 0.63in (16mm ) / 6AWG |
Recommended Cable Size | 0.24in (6mm2) / 10AWG or larger |
Specifications
Item number: 709-3024-01UPC: 015535906870
Package weight: 3.00 lb
List of Compatible Units:
XANTREX 100W Solar Panel w/Mounting Hardware |
XANTREX 110W Solar Flex Panel w/Mounting Hardware |
XANTREX 160W Solar Panel w/Mounting Hardware |
